Fix Atari PPO example (#780)

- [x] I have marked all applicable categories:
    + [ ] exception-raising fix
    + [x] algorithm implementation fix
    + [ ] documentation modification
    + [ ] new feature
- [x] I have reformatted the code using `make format` (**required**)
- [x] I have checked the code using `make commit-checks` (**required**)
- [x] If applicable, I have mentioned the relevant/related issue(s)
- [x] If applicable, I have listed every items in this Pull Request
below

While trying to debug Atari PPO+LSTM, I found significant gap between
our Atari PPO example vs [CleanRL's Atari PPO w/
EnvPool](https://docs.cleanrl.dev/rl-algorithms/ppo/#ppo_atari_envpoolpy).
I tried to align our implementation with CleaRL's version, mostly in
hyper parameter choices, and got significant gain in Breakout, Qbert,
SpaceInvaders while on par in other games. After this fix, I would
suggest updating our [Atari
Benchmark](https://tianshou.readthedocs.io/en/master/tutorials/benchmark.html)
PPO experiments.

A few interesting findings:

- Layer initialization helps stabilize the training and enable the use
of larger learning rates; without it, larger learning rates will trigger
NaN gradient very quickly;
- ppo.py#L97-L101: this change helps training stability for reasons I do
not understand; also it makes the GPU usage higher.

Shoutout to [CleanRL](https://github.com/vwxyzjn/cleanrl) for a
well-tuned Atari PPO reference implementation!

examples/atari/README.md

@@ -114,13 +114,13 @@ One epoch here is equal to 100,000 env step, 100 epochs stand for 10M.

 | task                        | best reward | reward curve                          | parameters                                                   |
 | --------------------------- | ----------- | ------------------------------------- | ------------------------------------------------------------ |

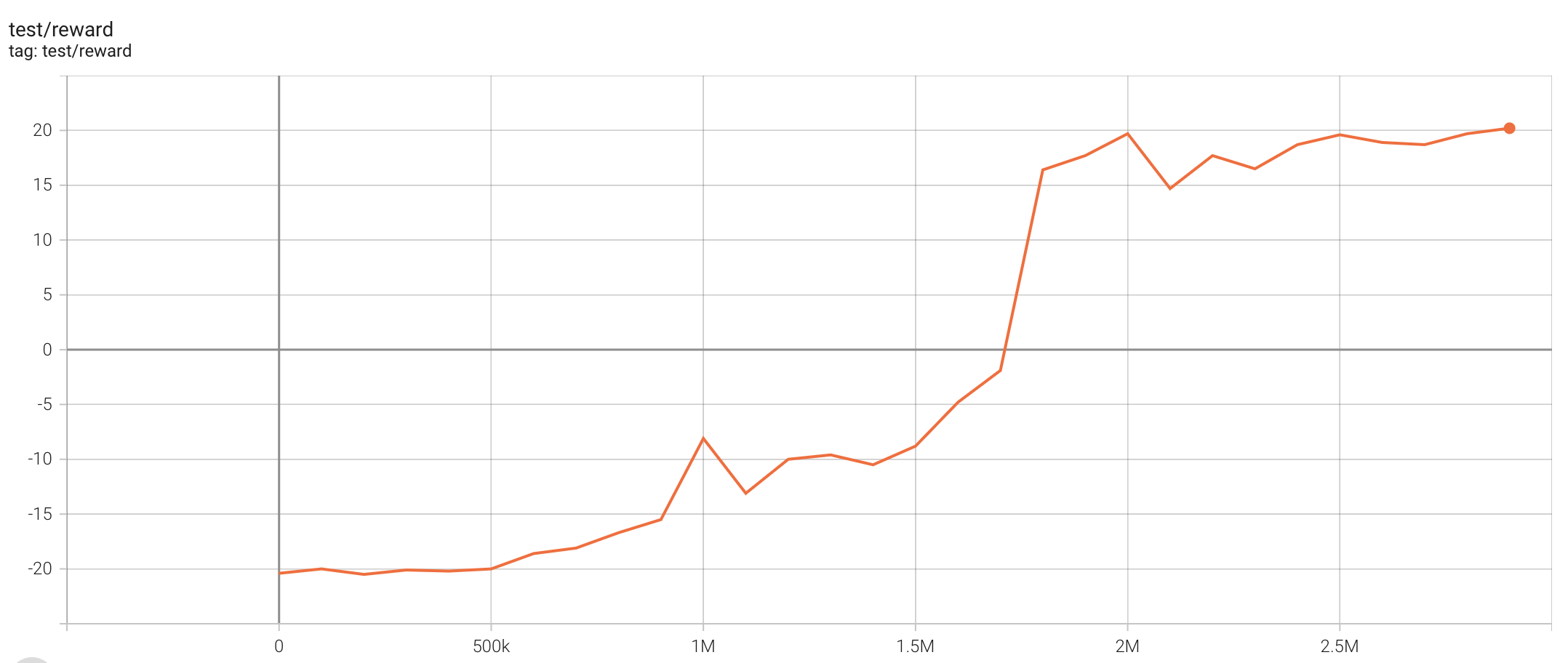

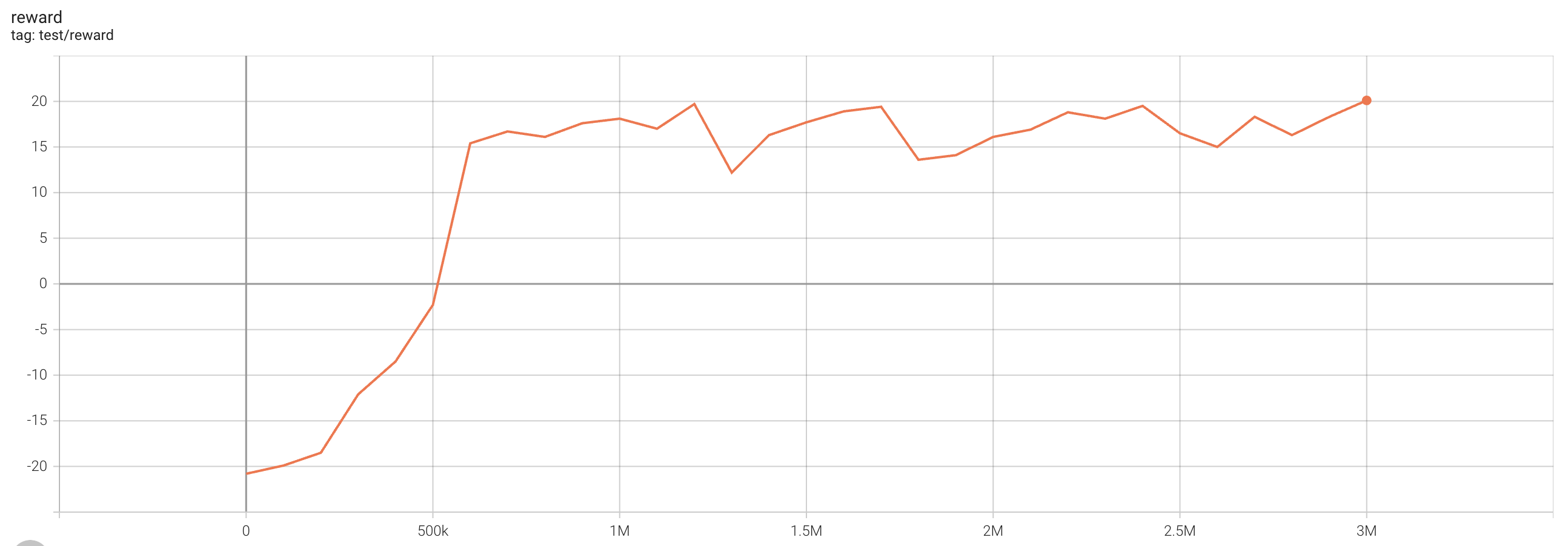

-| PongNoFrameskip-v4          | 20.1        | ![](results/ppo/Pong_rew.png)         | `python3 atari_ppo.py --task "PongNoFrameskip-v4"` |
+| PongNoFrameskip-v4          | 20.2        | ![](results/ppo/Pong_rew.png)         | `python3 atari_ppo.py --task "PongNoFrameskip-v4"` |

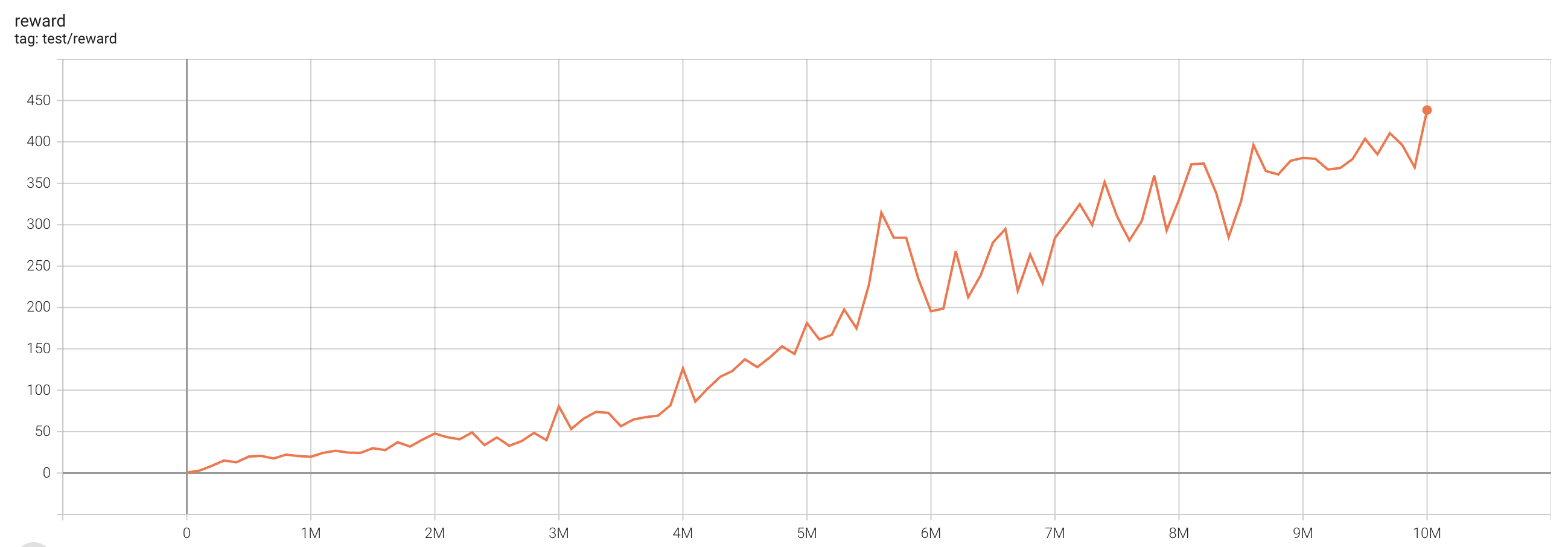

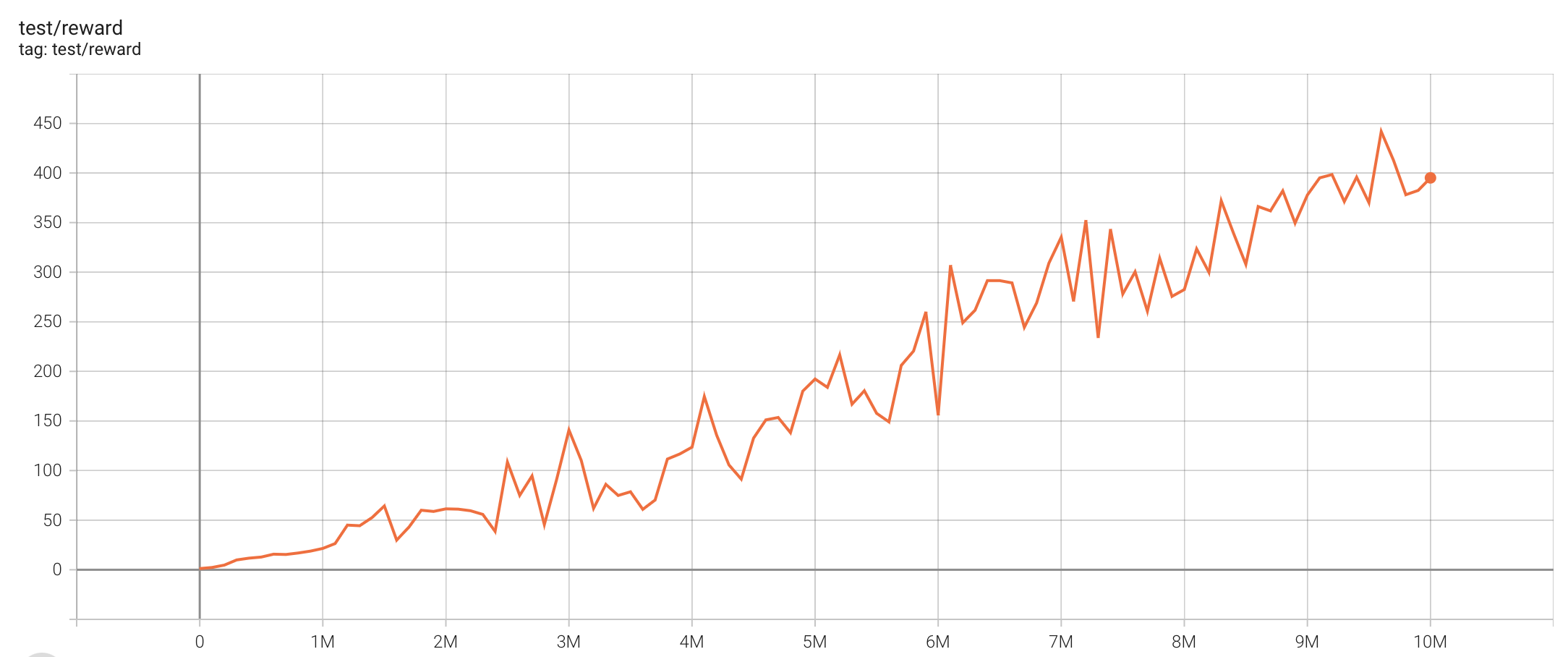

-| BreakoutNoFrameskip-v4      | 438.5        | ![](results/ppo/Breakout_rew.png)     | `python3 atari_ppo.py --task "BreakoutNoFrameskip-v4"` |
+| BreakoutNoFrameskip-v4      | 441.8        | ![](results/ppo/Breakout_rew.png)     | `python3 atari_ppo.py --task "BreakoutNoFrameskip-v4"` |

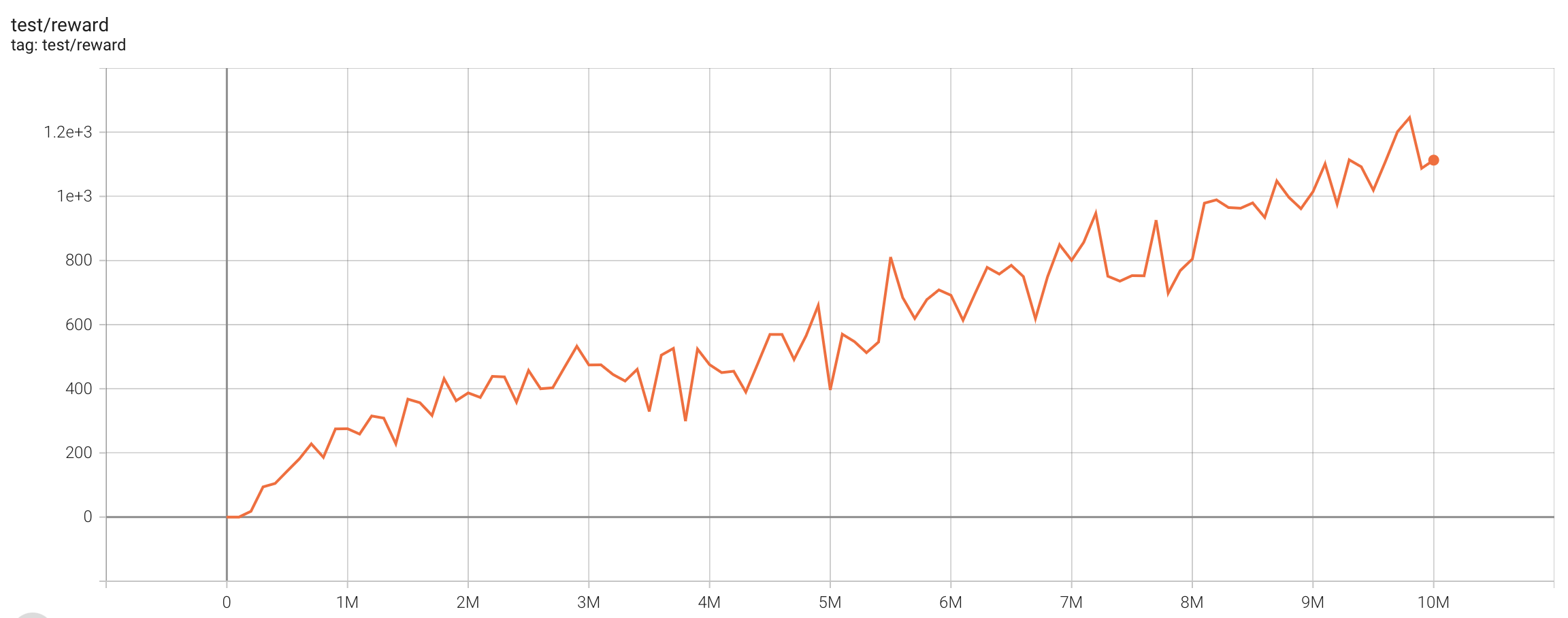

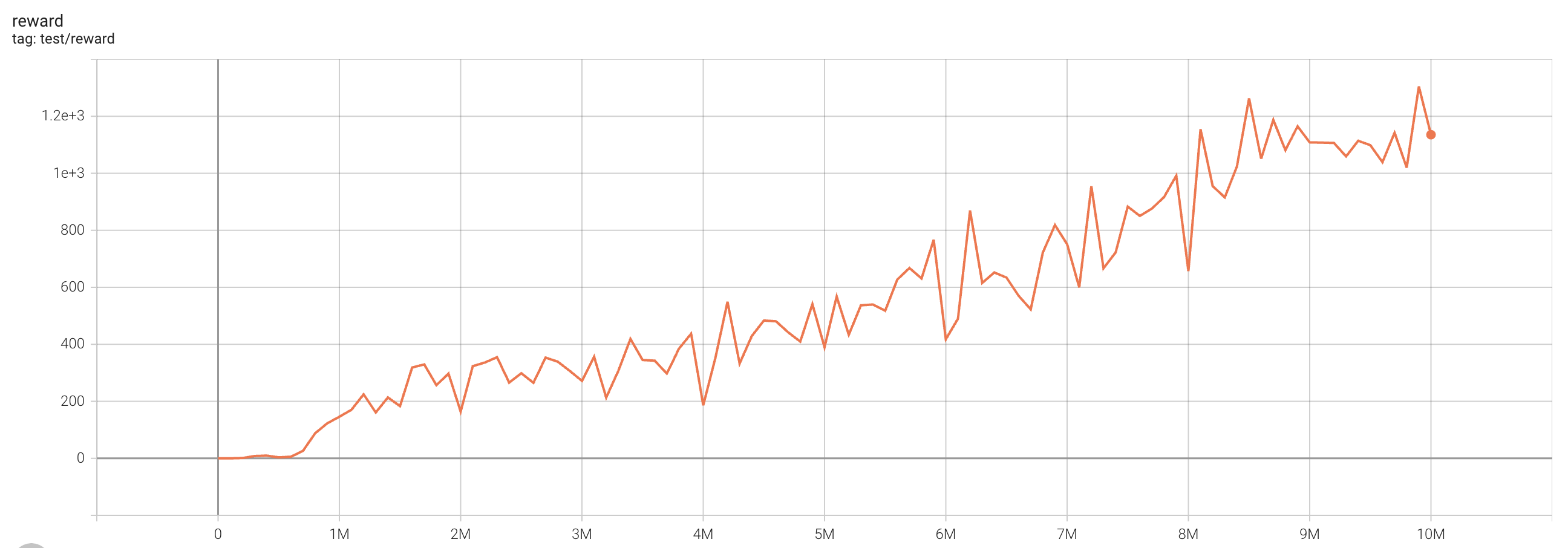

-| EnduroNoFrameskip-v4        | 1304.8       | ![](results/ppo/Enduro_rew.png)       | `python3 atari_ppo.py --task "EnduroNoFrameskip-v4"`  |
+| EnduroNoFrameskip-v4        | 1245.4       | ![](results/ppo/Enduro_rew.png)       | `python3 atari_ppo.py --task "EnduroNoFrameskip-v4"`  |

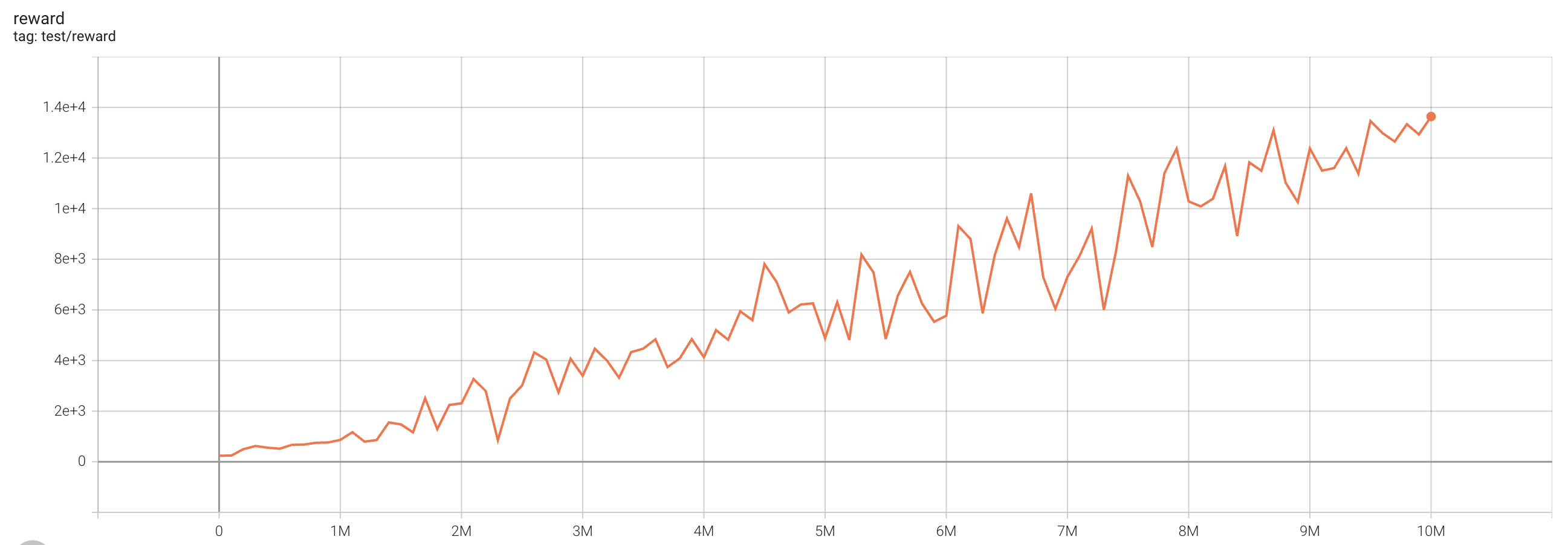

-| QbertNoFrameskip-v4         | 13640      | ![](results/ppo/Qbert_rew.png)        | `python3 atari_ppo.py --task "QbertNoFrameskip-v4"`  |

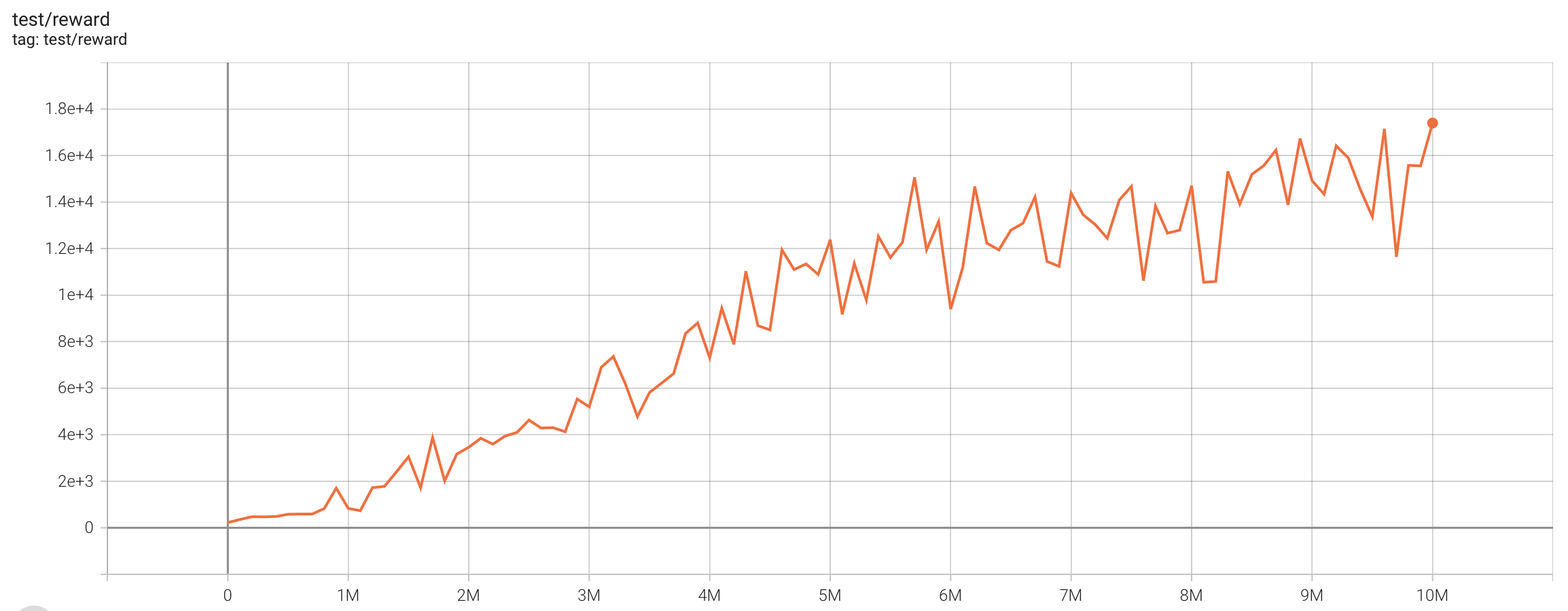

+| QbertNoFrameskip-v4         | 17395      | ![](results/ppo/Qbert_rew.png)        | `python3 atari_ppo.py --task "QbertNoFrameskip-v4"`  |

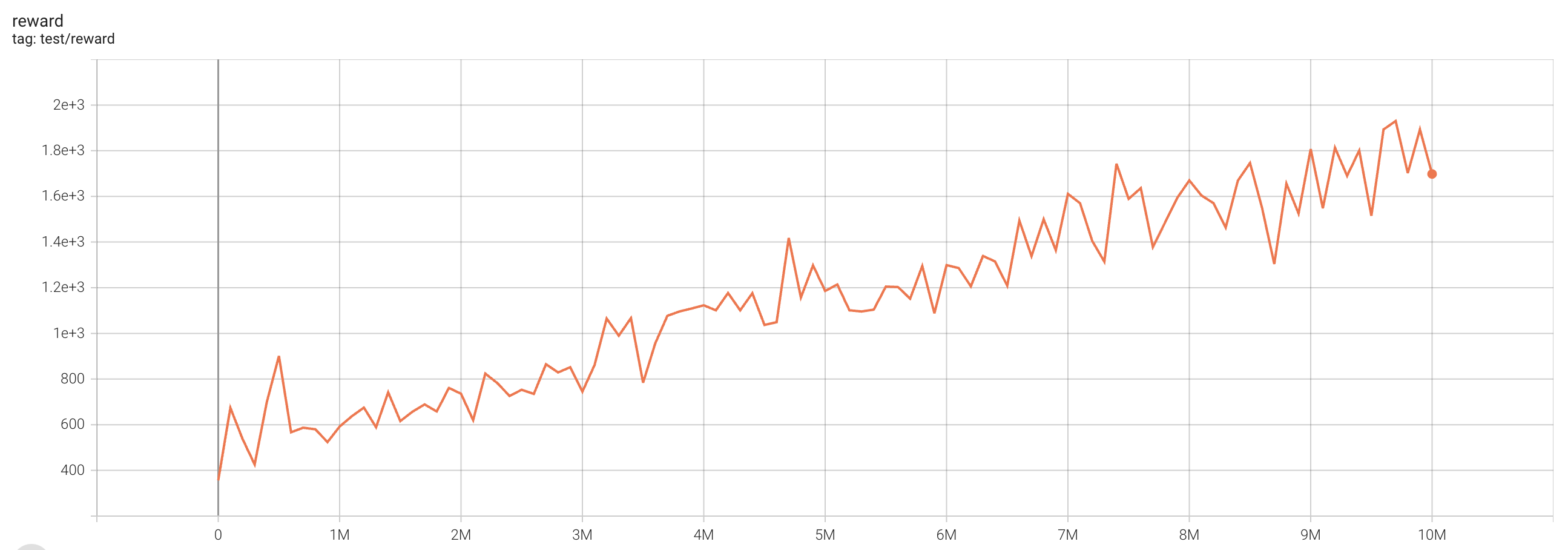

-| MsPacmanNoFrameskip-v4      | 1930       | ![](results/ppo/MsPacman_rew.png)     | `python3 atari_ppo.py --task "MsPacmanNoFrameskip-v4"`  |

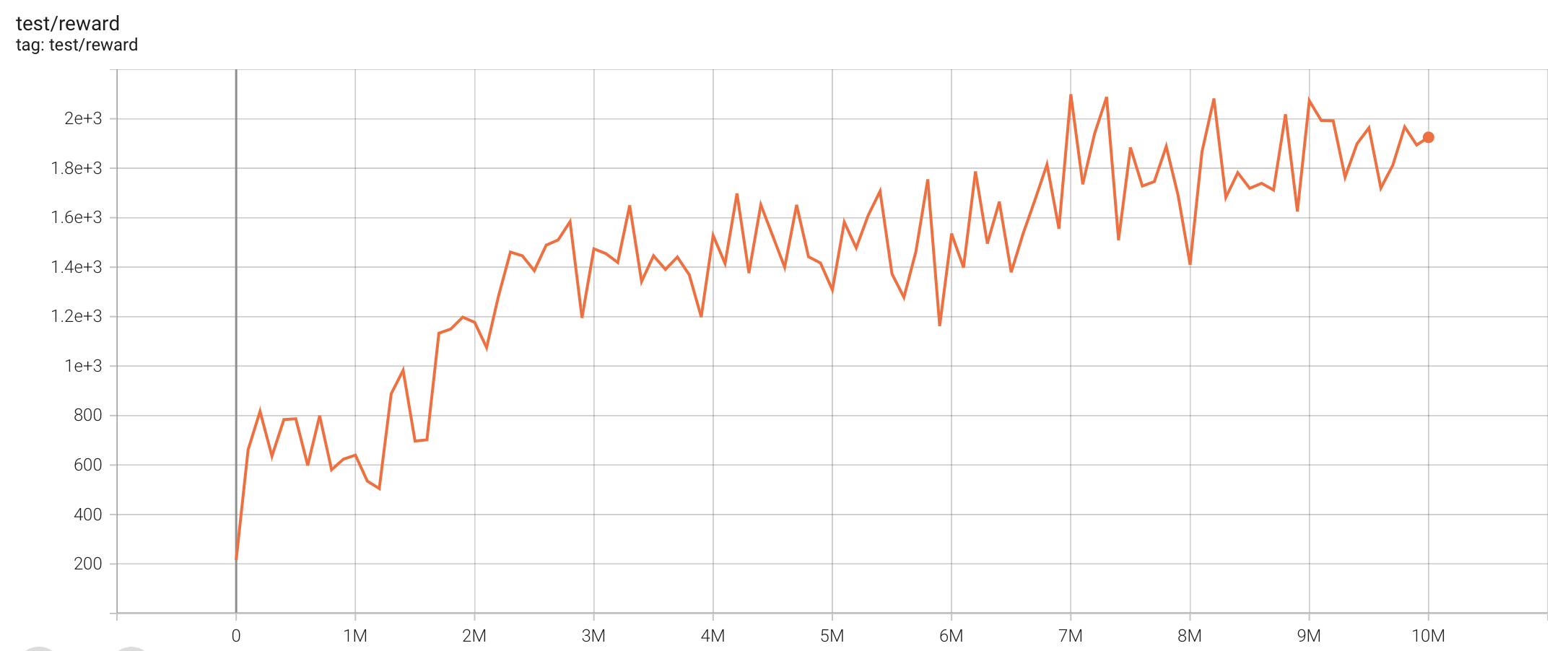

+| MsPacmanNoFrameskip-v4      | 2098       | ![](results/ppo/MsPacman_rew.png)     | `python3 atari_ppo.py --task "MsPacmanNoFrameskip-v4"`  |

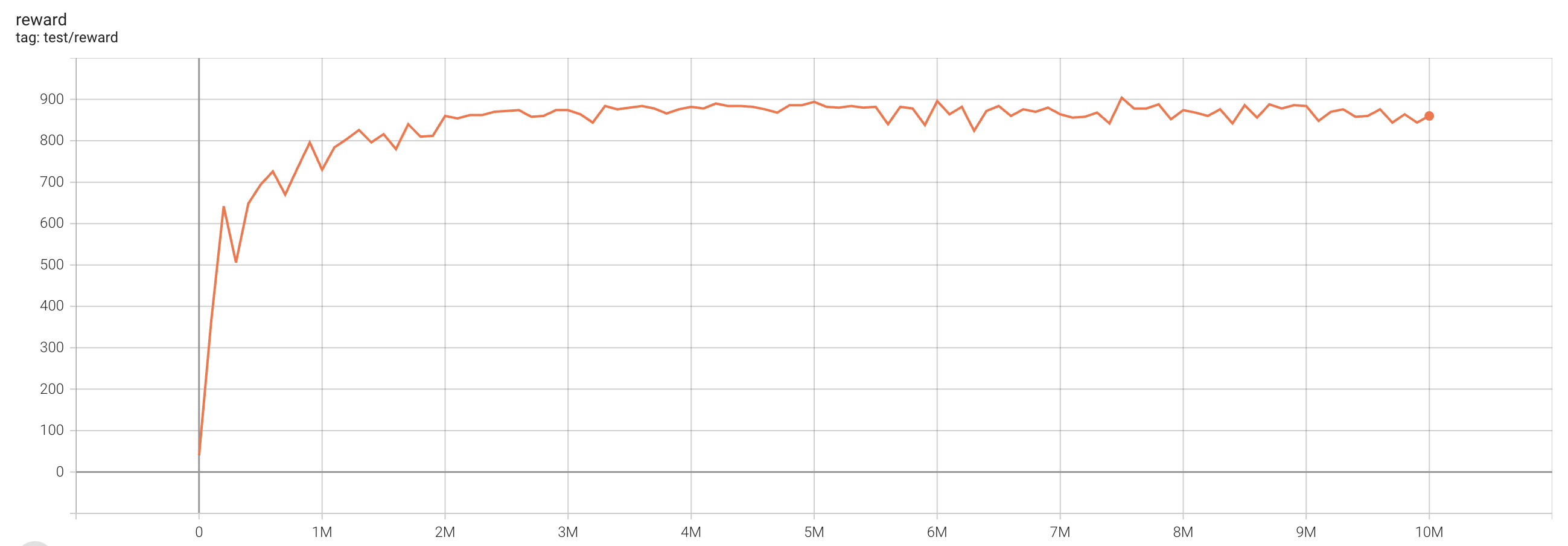

-| SeaquestNoFrameskip-v4      | 904      | ![](results/ppo/Seaquest_rew.png)     | `python3 atari_ppo.py --task "SeaquestNoFrameskip-v4" --lr 2.5e-5`  |

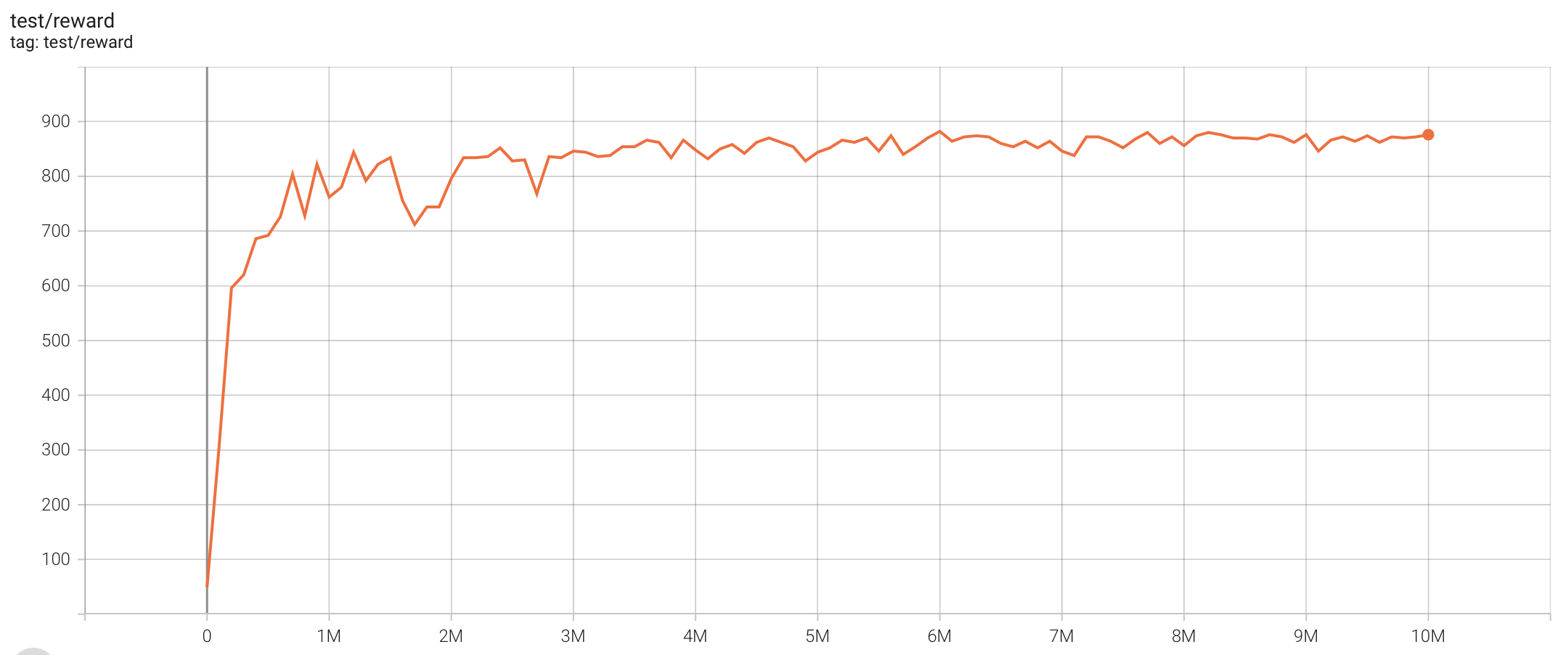

+| SeaquestNoFrameskip-v4      | 882      | ![](results/ppo/Seaquest_rew.png)     | `python3 atari_ppo.py --task "SeaquestNoFrameskip-v4" --lr 1e-4`  |

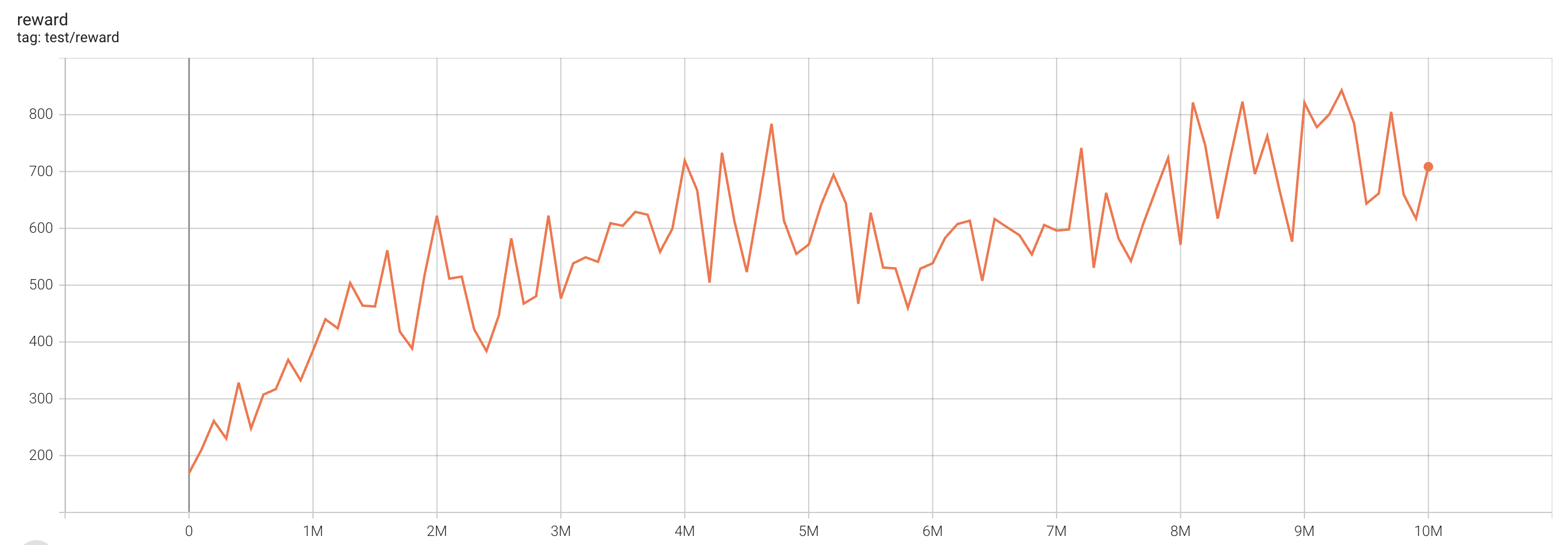

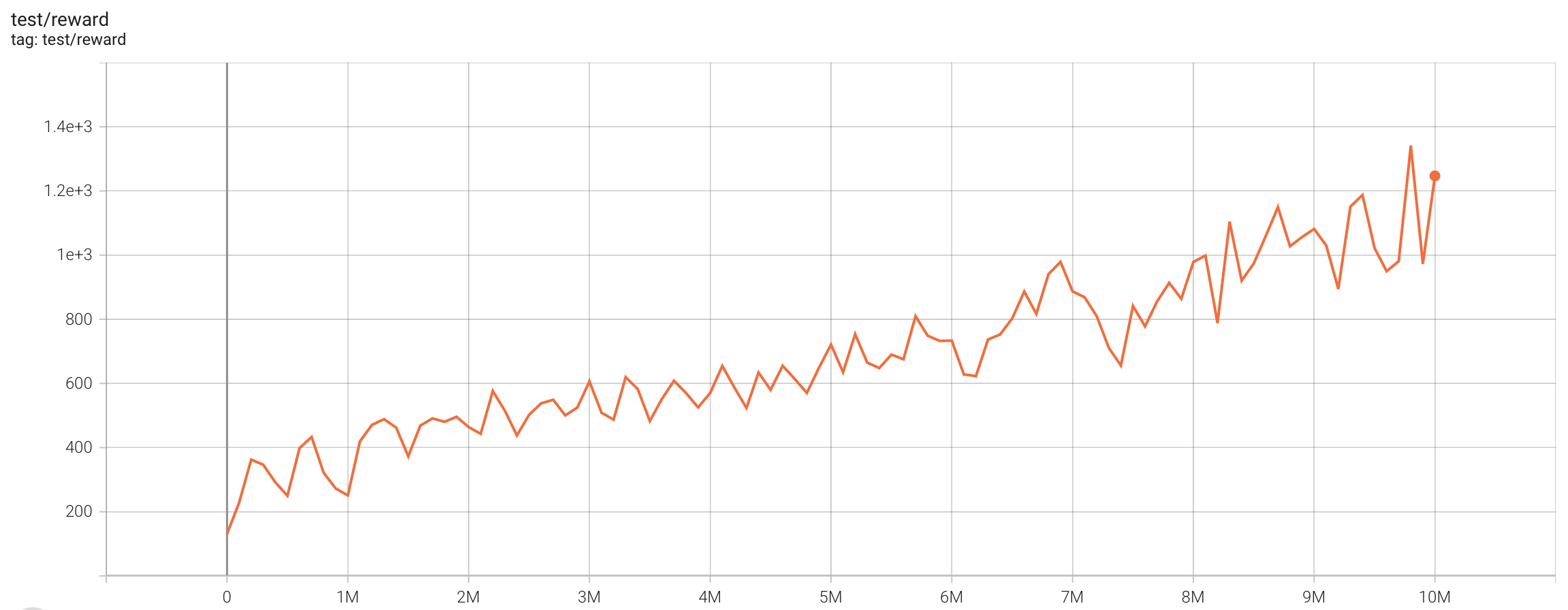

-| SpaceInvadersNoFrameskip-v4 | 843       | ![](results/ppo/SpaceInvaders_rew.png) | `python3 atari_ppo.py --task "SpaceInvadersNoFrameskip-v4"`  |
+| SpaceInvadersNoFrameskip-v4 | 1340.5       | ![](results/ppo/SpaceInvaders_rew.png) | `python3 atari_ppo.py --task "SpaceInvadersNoFrameskip-v4"`  |

 # SAC (single run)


examples/atari/atari_network.py

@@ -1,4 +1,4 @@
-from typing import Any, Dict, Optional, Sequence, Tuple, Union
+from typing import Any, Callable, Dict, Optional, Sequence, Tuple, Type, Union

 import numpy as np
 import torch
@@ -7,6 +7,29 @@ from torch import nn
 from tianshou.utils.net.discrete import NoisyLinear


+def layer_init(
+    layer: nn.Module, std: float = np.sqrt(2), bias_const: float = 0.0
+) -> nn.Module:
+    torch.nn.init.orthogonal_(layer.weight, std)
+    torch.nn.init.constant_(layer.bias, bias_const)
+    return layer
+
+
+def scale_obs(module: Type[nn.Module], denom: float = 255.0) -> Type[nn.Module]:
+
+    class scaled_module(module):
+
+        def forward(
+            self,
+            obs: Union[np.ndarray, torch.Tensor],
+            state: Optional[Any] = None,
+            info: Dict[str, Any] = {}
+        ) -> Tuple[torch.Tensor, Any]:
+            return super().forward(obs / denom, state, info)
+
+    return scaled_module
+
+
 class DQN(nn.Module):
     """Reference: Human-level control through deep reinforcement learning.

@@ -23,26 +46,30 @@ class DQN(nn.Module):
         device: Union[str, int, torch.device] = "cpu",
         features_only: bool = False,
         output_dim: Optional[int] = None,
+        layer_init: Callable[[nn.Module], nn.Module] = lambda x: x,
     ) -> None:
         super().__init__()
         self.device = device
         self.net = nn.Sequential(
-            nn.Conv2d(c, 32, kernel_size=8, stride=4), nn.ReLU(inplace=True),
+            layer_init(nn.Conv2d(c, 32, kernel_size=8, stride=4)),
-            nn.Conv2d(32, 64, kernel_size=4, stride=2), nn.ReLU(inplace=True),
+            nn.ReLU(inplace=True),
-            nn.Conv2d(64, 64, kernel_size=3, stride=1), nn.ReLU(inplace=True),
+            layer_init(nn.Conv2d(32, 64, kernel_size=4, stride=2)),
-            nn.Flatten()
+            nn.ReLU(inplace=True),
+            layer_init(nn.Conv2d(64, 64, kernel_size=3, stride=1)),
+            nn.ReLU(inplace=True), nn.Flatten()
         )
         with torch.no_grad():
             self.output_dim = np.prod(self.net(torch.zeros(1, c, h, w)).shape[1:])
         if not features_only:
             self.net = nn.Sequential(
-                self.net, nn.Linear(self.output_dim, 512), nn.ReLU(inplace=True),
+                self.net, layer_init(nn.Linear(self.output_dim, 512)),
-                nn.Linear(512, np.prod(action_shape))
+                nn.ReLU(inplace=True),
+                layer_init(nn.Linear(512, np.prod(action_shape)))
             )
             self.output_dim = np.prod(action_shape)
         elif output_dim is not None:
             self.net = nn.Sequential(
-                self.net, nn.Linear(self.output_dim, output_dim),
+                self.net, layer_init(nn.Linear(self.output_dim, output_dim)),
                 nn.ReLU(inplace=True)
             )
             self.output_dim = output_dim

examples/atari/atari_ppo.py

@@ -5,7 +5,7 @@ import pprint

 import numpy as np
 import torch
-from atari_network import DQN
+from atari_network import DQN, layer_init, scale_obs
 from atari_wrapper import make_atari_env
 from torch.optim.lr_scheduler import LambdaLR
 from torch.utils.tensorboard import SummaryWriter
@@ -22,9 +22,9 @@ def get_args():
     parser = argparse.ArgumentParser()
     parser.add_argument("--task", type=str, default="PongNoFrameskip-v4")
     parser.add_argument("--seed", type=int, default=4213)
-    parser.add_argument("--scale-obs", type=int, default=0)
+    parser.add_argument("--scale-obs", type=int, default=1)
     parser.add_argument("--buffer-size", type=int, default=100000)
-    parser.add_argument("--lr", type=float, default=5e-5)
+    parser.add_argument("--lr", type=float, default=2.5e-4)
     parser.add_argument("--gamma", type=float, default=0.99)
     parser.add_argument("--epoch", type=int, default=100)
     parser.add_argument("--step-per-epoch", type=int, default=100000)
@@ -35,14 +35,14 @@ def get_args():
     parser.add_argument("--training-num", type=int, default=10)
     parser.add_argument("--test-num", type=int, default=10)
     parser.add_argument("--rew-norm", type=int, default=False)
-    parser.add_argument("--vf-coef", type=float, default=0.5)
+    parser.add_argument("--vf-coef", type=float, default=0.25)
     parser.add_argument("--ent-coef", type=float, default=0.01)
     parser.add_argument("--gae-lambda", type=float, default=0.95)
     parser.add_argument("--lr-decay", type=int, default=True)
     parser.add_argument("--max-grad-norm", type=float, default=0.5)
-    parser.add_argument("--eps-clip", type=float, default=0.2)
+    parser.add_argument("--eps-clip", type=float, default=0.1)
     parser.add_argument("--dual-clip", type=float, default=None)
-    parser.add_argument("--value-clip", type=int, default=0)
+    parser.add_argument("--value-clip", type=int, default=1)
     parser.add_argument("--norm-adv", type=int, default=1)
     parser.add_argument("--recompute-adv", type=int, default=0)
     parser.add_argument("--logdir", type=str, default="log")
@@ -94,7 +94,7 @@ def test_ppo(args=get_args()):
         args.seed,
         args.training_num,
         args.test_num,
-        scale=args.scale_obs,
+        scale=0,
         frame_stack=args.frames_stack,
     )
     args.state_shape = env.observation_space.shape or env.observation_space.n
@@ -106,16 +106,20 @@ def test_ppo(args=get_args()):
     np.random.seed(args.seed)
     torch.manual_seed(args.seed)
     # define model
-    net = DQN(
+    net_cls = scale_obs(DQN) if args.scale_obs else DQN
+    net = net_cls(
         *args.state_shape,
         args.action_shape,
         device=args.device,
         features_only=True,
-        output_dim=args.hidden_size
+        output_dim=args.hidden_size,
+        layer_init=layer_init,
     )
     actor = Actor(net, args.action_shape, device=args.device, softmax_output=False)
     critic = Critic(net, device=args.device)
-    optim = torch.optim.Adam(ActorCritic(actor, critic).parameters(), lr=args.lr)
+    optim = torch.optim.Adam(
+        ActorCritic(actor, critic).parameters(), lr=args.lr, eps=1e-5
+    )

     lr_scheduler = None
     if args.lr_decay:

tianshou/policy/modelfree/ppo.py

@@ -79,9 +79,6 @@ class PPOPolicy(A2CPolicy):
             "Dual-clip PPO parameter should greater than 1.0."
         self._dual_clip = dual_clip
         self._value_clip = value_clip
-        if not self._rew_norm:
-            assert not self._value_clip, \
-                "value clip is available only when `reward_normalization` is True"
         self._norm_adv = advantage_normalization
         self._recompute_adv = recompute_advantage
         self._actor_critic: ActorCritic
@@ -94,11 +91,8 @@ class PPOPolicy(A2CPolicy):
             self._buffer, self._indices = buffer, indices
         batch = self._compute_returns(batch, buffer, indices)
         batch.act = to_torch_as(batch.act, batch.v_s)
-        old_log_prob = []
         with torch.no_grad():
-            for minibatch in batch.split(self._batch, shuffle=False, merge_last=True):
+            batch.logp_old = self(batch).dist.log_prob(batch.act)
-                old_log_prob.append(self(minibatch).dist.log_prob(minibatch.act))
-        batch.logp_old = torch.cat(old_log_prob, dim=0)
         return batch

     def learn(  # type: ignore
@@ -113,7 +107,8 @@ class PPOPolicy(A2CPolicy):
                 dist = self(minibatch).dist
                 if self._norm_adv:
                     mean, std = minibatch.adv.mean(), minibatch.adv.std()
-                    minibatch.adv = (minibatch.adv - mean) / std  # per-batch norm
+                    minibatch.adv = (minibatch.adv -
+                                     mean) / (std + self._eps)  # per-batch norm
                 ratio = (dist.log_prob(minibatch.act) -
                          minibatch.logp_old).exp().float()
                 ratio = ratio.reshape(ratio.size(0), -1).transpose(0, 1)

tianshou/trainer/base.py

@@ -356,7 +356,8 @@ class BaseTrainer(ABC):
             print(
                 f"Epoch #{self.epoch}: test_reward: {rew:.6f} ± {rew_std:.6f},"
                 f" best_reward: {self.best_reward:.6f} ± "
-                f"{self.best_reward_std:.6f} in #{self.best_epoch}"
+                f"{self.best_reward_std:.6f} in #{self.best_epoch}",
+                flush=True
             )
         if not self.is_run:
             test_stat = {
