**Tianshou** (天授) is a reinforcement learning platform based on pure PyTorch. Unlike existing reinforcement learning libraries, which are mainly based on TensorFlow, have many nested classes, unfriendly API, or slow-speed, Tianshou provides a fast-speed framework and pythonic API for building the deep reinforcement learning agent. The supported interface algorithms include:
- [Policy Gradient (PG)](https://papers.nips.cc/paper/1713-policy-gradient-methods-for-reinforcement-learning-with-function-approximation.pdf)
- [Deep Q-Network (DQN)](https://storage.googleapis.com/deepmind-media/dqn/DQNNaturePaper.pdf)
- [Double DQN (DDQN)](https://arxiv.org/pdf/1509.06461.pdf) with n-step returns
- [Advantage Actor-Critic (A2C)](https://openai.com/blog/baselines-acktr-a2c/)
- [Deep Deterministic Policy Gradient (DDPG)](https://arxiv.org/pdf/1509.02971.pdf)
- [Proximal Policy Optimization (PPO)](https://arxiv.org/pdf/1707.06347.pdf)
- [Twin Delayed DDPG (TD3)](https://arxiv.org/pdf/1802.09477.pdf)
- [Soft Actor-Critic (SAC)](https://arxiv.org/pdf/1812.05905.pdf)
Tianshou supports parallel workers for all algorithms as well. All of these algorithms are reformatted as replay-buffer based algorithms.
## Installation
Tianshou is currently hosted on [PyPI](https://pypi.org/project/tianshou/). You can simply install Tianshou with the following command:
```bash
pip3 install tianshou
```
You can also install with the newest version through GitHub:
```bash
pip3 install git+https://github.com/thu-ml/tianshou.git@master
```
After installation, open your python console and type
```python
import tianshou as ts
print(ts.__version__)
```
If no error occurs, you have successfully installed Tianshou.
## Documentation
The tutorials and API documentation are hosted on [tianshou.readthedocs.io](https://tianshou.readthedocs.io).
The example scripts are under [test/](https://github.com/thu-ml/tianshou/blob/master/test) folder and [examples/](https://github.com/thu-ml/tianshou/blob/master/examples) folder.
## Why Tianshou?
### Fast-speed

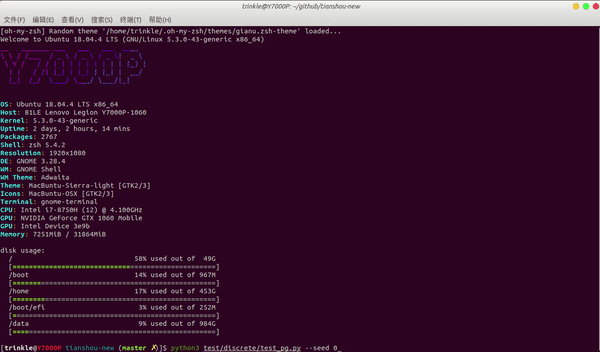

Tianshou is a lightweight but high-speed reinforcement learning platform. For example, here is a test on a laptop (i7-8750H + GTX1060). It only uses 3 seconds for training a agent based on vanilla policy gradient on the CartPole-v0 task: `python3 test/discrete/test_pg.py --seed 0 --render 0.03` (seed may be different across different platform and device)
We select some of famous reinforcement learning platforms: 2 GitHub repo with most stars in all RL platforms (Baselines, RLlib) and 2 GitHub repo with most stars in PyTorch RL platforms (PyTorch DRL and rlpyt). Here is the benchmark result for other algorithms and platforms on toy scenarios: (tested on the same laptop as mentioned above)
| RL Platform | [Tianshou](https://github.com/thu-ml/tianshou) | [Baselines](https://github.com/openai/baselines) | [Ray/RLlib](https://github.com/ray-project/ray/tree/master/rllib/) | [PyTorch DRL](https://github.com/p-christ/Deep-Reinforcement-Learning-Algorithms-with-PyTorch) | [rlpyt](https://github.com/astooke/rlpyt) |
| --------------- | ------------------------------------------------------------ | ------------------------------------------------------------ | ------------------------------------------------------------ | ------------------------------------------------------------ | ------------------------------------------------------------ |
| GitHub Stars | [](https://github.com/thu-ml/tianshou/stargazers) | [](https://github.com/openai/baselines/stargazers) | [](https://github.com/ray-project/ray/stargazers) | [](https://github.com/p-christ/Deep-Reinforcement-Learning-Algorithms-with-PyTorch/stargazers) | [](https://github.com/astooke/rlpyt/stargazers) |
| Algo - Task | PyTorch | TensorFlow | TF/PyTorch | PyTorch | PyTorch |
| PG - CartPole | 9.03±4.18s | None | 15.77±6.28s | None | ? |
| DQN - CartPole | 10.61±5.51s | 1046.34±291.27s | 40.16±12.79s | 175.55±53.81s | ? |
| A2C - CartPole | 11.72±3.85s | *(~1612s) | 46.15±6.64s | Runtime Error | ? |
| PPO - CartPole | 35.25±16.47s | *(~1179s) | 62.21±13.31s (APPO) | 29.16±15.46s | ? |
| DDPG - Pendulum | 46.95±24.31s | *(>1h) | 377.99±13.79s | 652.83±471.28s | 172.18±62.48s |
| TD3 - Pendulum | 48.39±7.22s | None | 620.83±248.43s | 619.33±324.97s | 210.31±76.30s |
| SAC - Pendulum | 38.92±2.09s | None | 92.68±4.48s | 808.21±405.70s | 295.92±140.85s |
*\*: Could not reach the target reward threshold in 1e6 steps in any of 10 runs. The total runtime is in the brackets.*
*?: We have tried but it is nontrivial for running non-Atari game on rlpyt. See [here](https://github.com/astooke/rlpyt/issues/127#issuecomment-601741210).*
All of the platforms use 10 different seeds for testing. We erase those trials which failed for training. The reward threshold is 195.0 in CartPole and -250.0 in Pendulum over consecutive 100 episodes' mean returns.
Tianshou and RLlib's configures are very similar. They both use multiple workers for sampling. Indeed, both RLlib and rlpyt are excellent reinforcement learning platform.
We will add results of Atari Pong / Mujoco these days.
### Reproducible
Tianshou has its unit tests. Different from other platforms, **the unit tests include the full agent training procedure for all of the implemented algorithms**. It would be failed once if it could not train an agent to perform well enough on limited epochs on toy scenarios. The unit tests secure the reproducibility of our platform.
Check out the [GitHub Actions](https://github.com/thu-ml/tianshou/actions) page for more detail.
### Modularized Policy
We decouple all of the algorithms into 4 parts:
- `__init__`: initialize the policy;
- `process_fn`: to preprocess data from replay buffer (since we have reformulated all algorithms to replay-buffer based algorithms);
- `__call__`: to compute actions over given observations;
- `learn`: to learn from a given batch data.
Within these API, we can interact with different policies conveniently.
### Elegant and Flexible
Currently, the overall code of Tianshou platform is less than 1500 lines. Most of the implemented algorithms are less than 100 lines of python code. It is quite easy to go through the framework and understand how it works. We provide many flexible API as you wish, for instance, if you want to use your policy to interact with environment with `n` steps:
```python
result = collector.collect(n_step=n)
```
If you have 3 environment in total and want to collect 1 episode in the first environment, 3 for third environment:
```python
result = collector.collect(n_episode=[1, 0, 3])
```
If you want to train the given policy with a sampled batch:
```python
result = policy.learn(collector.sample(batch_size))
```
You can check out the [documentation](https://tianshou.readthedocs.io) for further usage.
## Quick Start
This is an example of Deep Q Network. You can also run the full script at [test/discrete/test_dqn.py](https://github.com/thu-ml/tianshou/blob/master/test/discrete/test_dqn.py).
First, import some relevant packages:
```python
import gym, torch, numpy as np, torch.nn as nn
from torch.utils.tensorboard import SummaryWriter
import tianshou as ts
```
Define some hyper-parameters:
```python
task = 'CartPole-v0'
lr = 1e-3
gamma = 0.9
n_step = 3
eps_train, eps_test = 0.1, 0.05
epoch = 10
step_per_epoch = 1000
collect_per_step = 10
target_freq = 320
batch_size = 64
train_num, test_num = 8, 100
buffer_size = 20000
writer = SummaryWriter('log/dqn') # tensorboard is also supported!
```
Make environments:
```python
# you can also try with SubprocVectorEnv
train_envs = ts.env.VectorEnv([lambda: gym.make(task) for _ in range(train_num)])
test_envs = ts.env.VectorEnv([lambda: gym.make(task) for _ in range(test_num)])
```
Define the network:
```python
class Net(nn.Module):
def __init__(self, state_shape, action_shape):
super().__init__()
self.model = nn.Sequential(*[
nn.Linear(np.prod(state_shape), 128), nn.ReLU(inplace=True),
nn.Linear(128, 128), nn.ReLU(inplace=True),
nn.Linear(128, 128), nn.ReLU(inplace=True),
nn.Linear(128, np.prod(action_shape))
])
def forward(self, s, state=None, info={}):
if not isinstance(s, torch.Tensor):
s = torch.tensor(s, dtype=torch.float)
batch = s.shape[0]
logits = self.model(s.view(batch, -1))
return logits, state
env = gym.make(task)
state_shape = env.observation_space.shape or env.observation_space.n
action_shape = env.action_space.shape or env.action_space.n
net = Net(state_shape, action_shape)
optim = torch.optim.Adam(net.parameters(), lr=lr)
```
Setup policy and collectors:
```python
policy = ts.policy.DQNPolicy(net, optim, gamma, n_step,
use_target_network=True, target_update_freq=target_freq)
train_collector = ts.data.Collector(policy, train_envs, ts.data.ReplayBuffer(buffer_size))
test_collector = ts.data.Collector(policy, test_envs)
```
Let's train it:
```python
result = ts.trainer.offpolicy_trainer(
policy, train_collector, test_collector, epoch, step_per_epoch, collect_per_step,
test_num, batch_size, train_fn=lambda e: policy.set_eps(eps_train),
test_fn=lambda e: policy.set_eps(eps_test),
stop_fn=lambda x: x >= env.spec.reward_threshold, writer=writer, task=task)
print(f'Finished training! Use {result["duration"]}')
```
Save / load the trained policy (it's exactly the same as PyTorch nn.module):
```python
torch.save(policy.state_dict(), 'dqn.pth')
policy.load_state_dict(torch.load('dqn.pth'))
```
Watch the performance with 35 FPS:
```python
collector = ts.data.Collector(policy, env)
collector.collect(n_episode=1, render=1 / 35)
collector.close()
```
Look at the result saved in tensorboard: (on bash script)
```bash
tensorboard --logdir log/dqn
```
You can check out the [documentation](https://tianshou.readthedocs.io) for advanced usage.
## Contributing
Tianshou is still under development. More algorithms and features are going to be added and we always welcome contributions to help make Tianshou better. If you would like to contribute, please check out [CONTRIBUTING.md](https://github.com/thu-ml/tianshou/blob/master/CONTRIBUTING.md).
## Citing Tianshou
If you find Tianshou useful, please cite it in your publications.
```latex
@misc{tianshou,
author = {Jiayi Weng, Minghao Zhang},
title = {Tianshou},
year = {2020},
publisher = {GitHub},
journal = {GitHub repository},
howpublished = {\url{https://github.com/thu-ml/tianshou}},
}
```
## TODO
- [x] More examples on [mujoco, atari] benchmark
- [ ] More algorithms
- [ ] Prioritized replay buffer
- [ ] RNN support
- [ ] Imitation Learning
- [ ] Multi-agent
- [ ] Distributed training
## Miscellaneous
Tianshou was previously a reinforcement learning platform based on TensorFlow. You can checkout the branch [`priv`](https://github.com/thu-ml/tianshou/tree/priv) for more detail.
